The City Metaphor is a powerful way to visualize software code as a 3D city. It’s especially useful for understanding large, complex object-oriented codebases by mapping code elements to city-like structures.
In this metaphor:
-
Buildings represent types like classes, interfaces, structs, enums, etc
-
Building height corresponds to the size or complexity of the class (e.g. lines of code, number of methods) or other class-level metrics
-
Building width/depth can represent the number of attributes or other class-level metrics
-
City blocks or districts represent packages, modules, or namespaces.

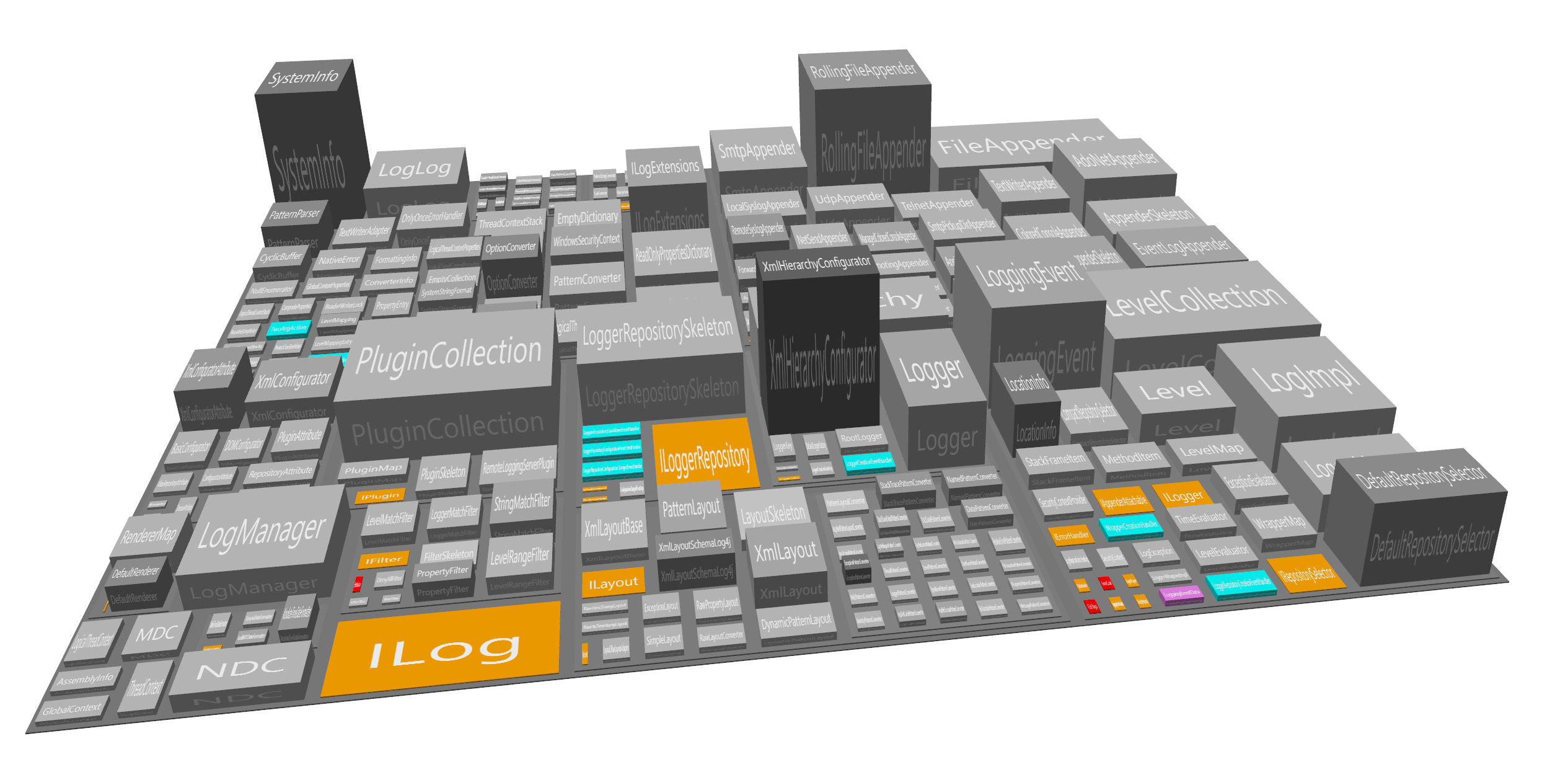

TODO Bild einfügen
What It’s Good For
-
Cognitive Aid: Our brains process spatial metaphors well. You can "walk through" the codebase like exploring a city.
-
Detecting Smells: Unusually large or complex classes (like "skyscrapers") or overpopulated packages (like "slums") visually stand out.
-
Architecture Overview: Helps identify cohesion, coupling, and structural anomalies.
Example Analogy
Imagine your software is a city:
- A package becomes a district.
- Each class is a building in that district.
- A huge building (class with thousands of lines) might indicate a God Object or low cohesion.
- Dense blocks might indicate tight coupling or poor modularization.
